Main

• range of product: Acti9

• Product or component type: OC contact

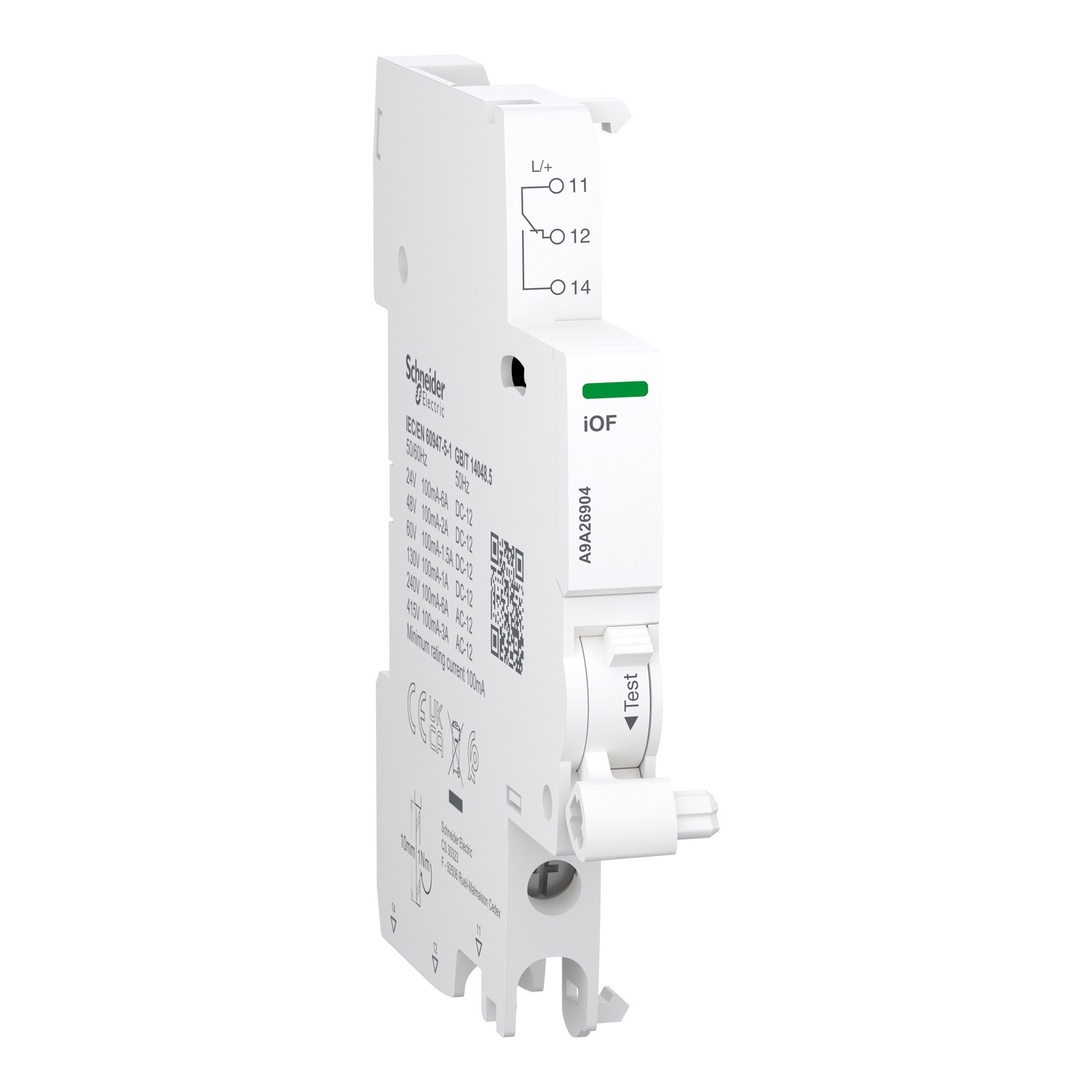

• Device short name: iOF

• Signal contacts composition: 1 C/O

• [In] rated current:

• 0.1...6 A at 24...240 V, AC 50/60 Hz

• 0.1...3 A at 415 V, AC 50/60 Hz

• 0.1...6 A at 24 V, DC

• 0.1...2 A at 48 V, DC

• 0.1...1.5 A at 60 V, DC

• 0.1...1 A at 130 V, DC

• 9 mm pitches: 1

• Standards:

• EN/IEC 60947-5-1

• GB/T 14048.5

• Product certifications:

• CE

• UKCA

• Quality labels:

• EAC

• CCC

• CMIM

Complementary

• Range compatibility:

• Acti9 iC60H RCBO

• Acti9 iC60H RCBO PoN

• Acti9 iC60H2 RCBO

• Acti9 iC60N RCBO

• Acti9 iKQE RCBO

• Acti9 iSW

• Acti9 iCVm40

• Acti9 iCVr40

• Acti9 iDDm40

• [Ui] rated insulation voltage: 500 V

• [Uimp] rated impulse withstand voltage: 4 kV

• Mounting mode: Clip-on

• Mounting location: Left side of circuit-breaker

• Mounting support: DIN rail

• Comb busbar and distribution block compatibility: Top: YES

• Height: 86 mm

• Width: 9 mm

• Depth: 73 mm

• Net weight: 32 g

• Colour: White

• Connections - terminals:

• Screw clamp terminal (bottom): 1 cable(s) 1...4 mm² - rigid

• Screw clamp terminal (bottom): 1 cable(s) 0.5...2.5 mm² - flexible

• Screw clamp terminal (bottom): 2 cable(s) 2.5 mm² - rigid

• Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible with ferrule

• Wire stripping length: 10 mm

• Tightening torque: 1 N.m bottom
