Main

• Range: TeSys Deca

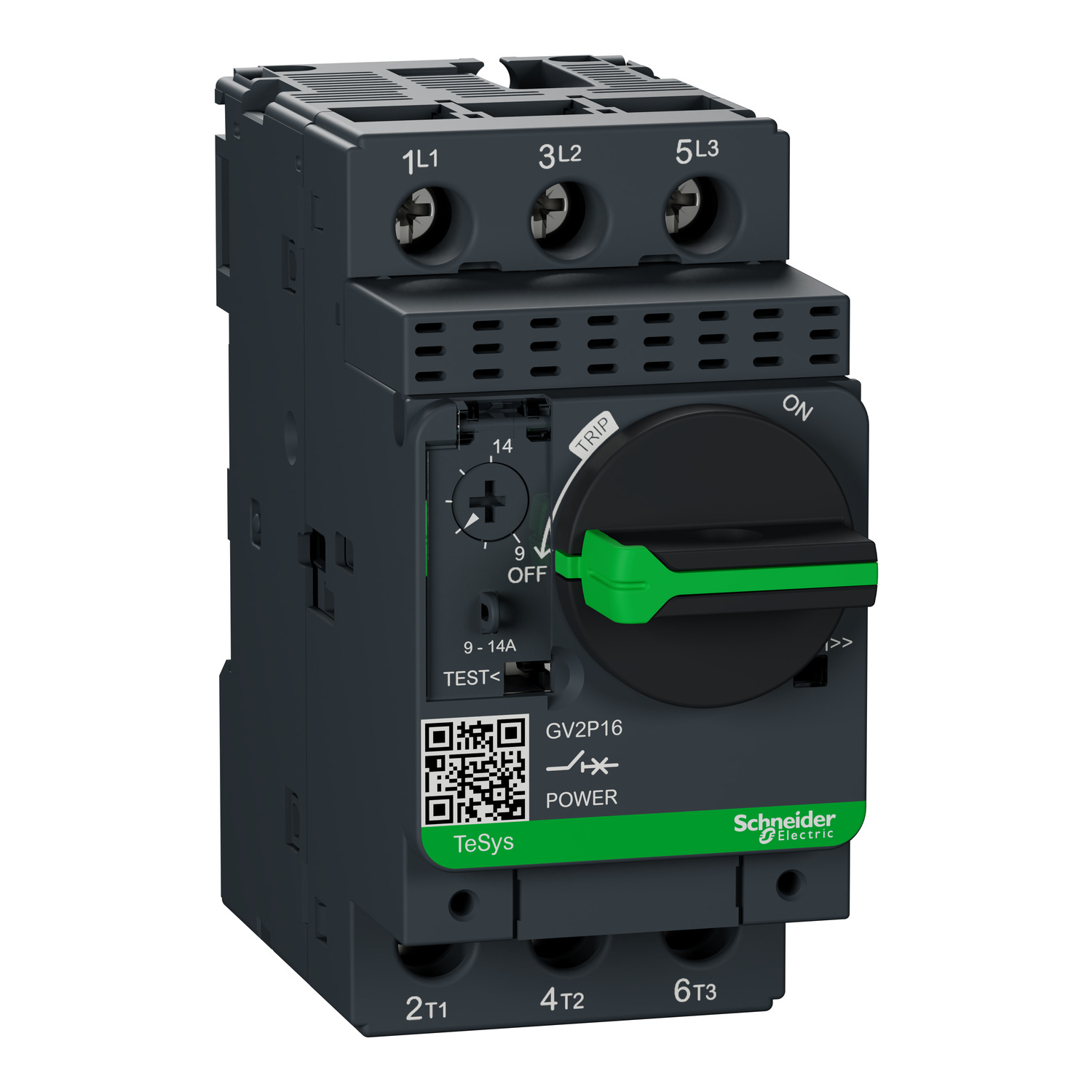

• Product name: TeSys GV2

• Product or component type: Motor circuit breaker

• Device short name: GV2P

• Device application: Motor protection

• Trip unit technology: Thermal-magnetic

Complementary

• Poles description: 3P

• Network type: AC

• Utilisation category:

• Category A conforming to IEC 60947-2

• AC-3 conforming to IEC 60947-4-1

• AC-3e conforming to IEC 60947-4-1

• Network frequency: 50/60 Hz conforming to IEC 60947-2

• Motor power kW:

• 5.5 kW at 400/415 V AC 50/60 Hz

• 7.5 kW at 500 V AC 50/60 Hz

• 9 kW at 690 V AC 50/60 Hz

• 11 kW at 690 V AC 50/60 Hz

• Breaking capacity:

• 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

• 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

• 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2

• 42 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

• 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

• [Ics] rated service short-circuit breaking capacity:

• 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2

• 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

• 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2

• 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2

• 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

• Control type: Rotary handle

• [In] rated current: 14 A

• Thermal protection adjustment range: 9...14 A conforming to IEC 60947-2

• Magnetic tripping current: 253.4 A

• [Ith] conventional free air thermal current: 14 A conforming to IEC 60947-2

• [Ue] rated operational voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2

• [Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2

• [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2

• Phase failure sensitivity: Yes conforming to IEC 60947-4-1

• Suitability for isolation: Yes conforming to IEC 60947-1

• Power dissipation per pole: 2.5 W

• Mechanical durability: 100000 cycles

• Electrical durability:

• 100000 cycles for AC-3 at 415 V In

• 100000 cycles for AC-3e at 415 V In

• Rated duty: Uninterrupted conforming to IEC 60947-4-1

• Connections - terminals:

• Power circuit: screw clamp terminal 2 cable(s) 1...6 mm² solid

• Power circuit: screw clamp terminal 2 cable(s) 1.5...6 mm² flexible without cable end

• Power circuit: screw clamp terminal 2 cable(s) 1...4 mm² flexible with cable end

• Tightening torque: 1.7 N.m - on screw clamp terminal

• Fixing mode:

• 35 mm symmetrical DIN rail: clipped

• Panel: screwed (with 2 x M4 screws)

• Mounting position:

• Horizontal

• Vertical

• Width: 45 mm

• Height: 89 mm

• Depth: 97 mm

• Colour: Dark grey
