Main

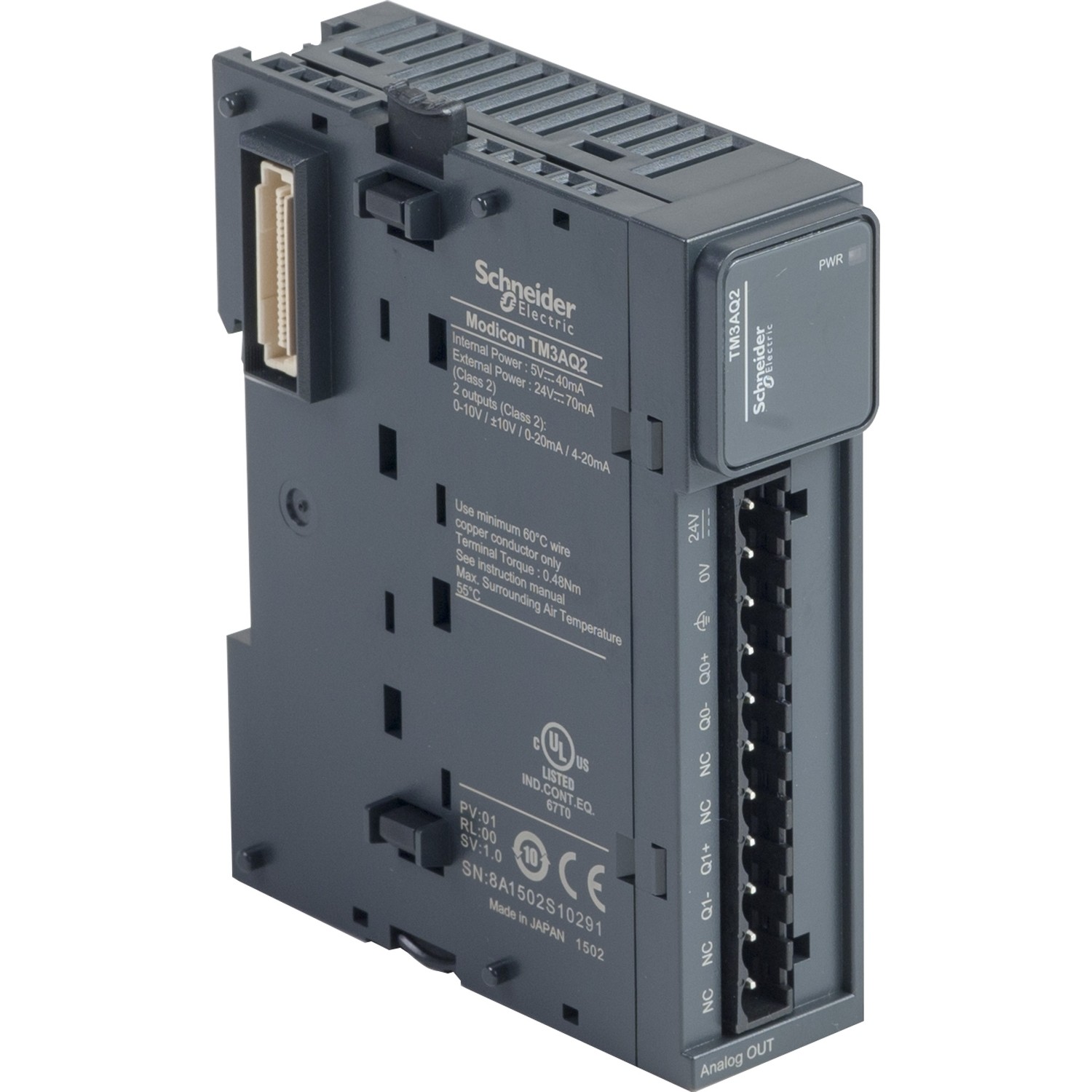

• Range of product: Modicon TM3

• Product or component type: Analog output module

• Range compatibility:

• Modicon M221

• Modicon M241

• Modicon M251

• Modicon M262

• Analogue output number: 2

Complementary

• Analogue input resolution:

• 12 bits

• 11 bits + sign

• Stabilisation time: 1 ms

• Analogue output type:

• Current 4...20 mA

• Current 0...20 mA

• Voltage 0...10 V

• Voltage -10...10 V

• Conversion time: 1 ms + 1 ms per channel + 1 controller cycle time

• Absolute accuracy error:

• +/- 0.1 % of full scale at 25 °C

• +/- 1 % of full scale

• Repeat accuracy: +/- 0.4 %FS

• Output ripple: 20 mV

• Cross talk: <= 1 LSB

• Type of cable: Twisted shielded pairs cable <30 m for output circuit

• Electrical connection: 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply

• LSB value:

• 2.44 mV, 0...10 V

• 4.88 mV, -10...10 V

• 4.88 µA, 0...20 mA

• 3.91 µA, 4...20 mA

• Insulation:

• Between output and supply at 1500 V AC

• Between output and internal logic at 500 V AC

• Immunity to microbreaks: 10 ms

• Load impedance ohmic:

• 1 kOhm (voltage)

• 300 Ohm (current)

• Load type: Resistive

• Temperature drift: +/- 0.006 %FS/°C

• Non-linearity: +/- 0.01 %FS

• Typical current consumption:

• 40 mA at 5 V DC full load

• 35 mA at 5 V DC no load

• 30 mA at 24 V DC no load

• 70 mA at 24 V DC full load

• Local signalling: 1 LED green for PWR

• Mounting support:

• Top hat type TH35-15 rail conforming to IEC 60715

• Top hat type TH35-7.5 rail conforming to IEC 60715

• Plate or panel with fixing kit

• Height: 90 mm

• Width: 23.6 mm

• Depth: 70 mm

• Net weight: 0.115 kg
