Main

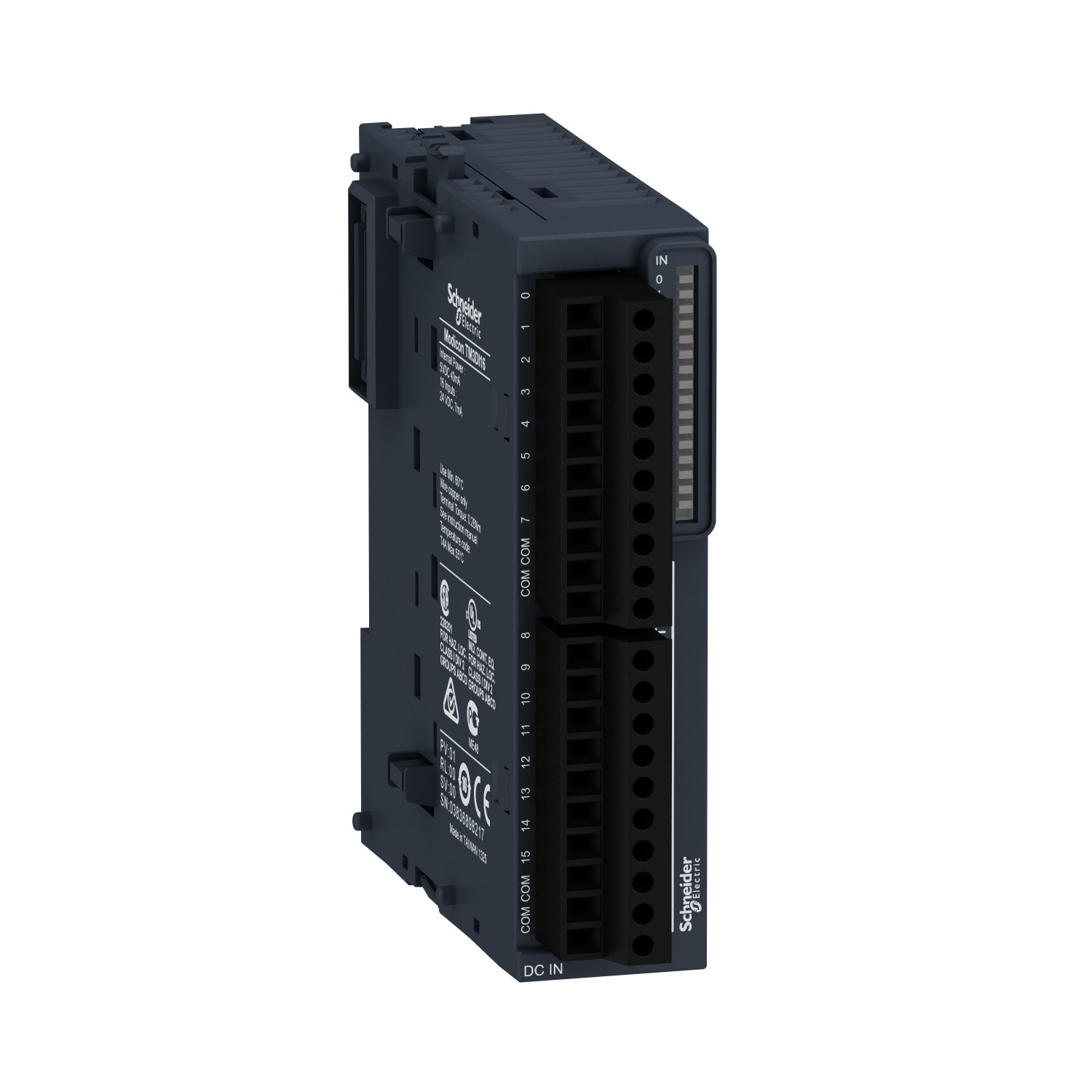

• Range of product: Modicon TM3

• Product or component type: Discrete input module

• Range compatibility:

• Modicon M241

• Modicon M251

• Modicon M221

• Modicon M262

• Device application: Industrial application

• Discrete input number: 16

• Discrete input voltage: 24 V DC

• Discrete input logic: Sink or source (positive/negative)

Complementary

• Discrete input number: 16 conforming to IEC 61131-2 type 3

• Discrete input current: 7 mA

• Voltage state 1 guaranteed: 15...28.8 V DC

• Voltage state 0 guaranteed: 0...5 V DC

• Current state 1 guaranteed: >= 2.5 mA

• Current state 0 guaranteed: <= 1 mA

• Input impedance: 3.4 kOhm

• Response time on input:

• 4 ms (maximum (turn on))

• 4 ms (maximum (turn off))

• Safety reliability data: MTBF = 250 years 40 °C

• Sensor power supply: 19.2...28.8 V

• Power supply type: Electronic powered by internal bus

• Typical current consumption: 34 mA at 5 V DC

• Electrical connection: 10 x 1...2.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs

• Maximum cable distance between devices: Unshielded cable: <50 m for regular input

• Isolation between channels and bus: 500 V AC

• Local signalling: 1 LED per channel (green) for input status

• Housing colour: Grey

• AWG gauge: 0.14...1.5 mm² / AWG 26...AWG 16 with solid cable

• Mounting support:

• Top hat type TH35-15 rail conforming to IEC 60715

• Top hat type TH35-7.5 rail conforming to IEC 60715

• plate or panel with fixing kit

• Height: 90 mm

• Width: 27.4 mm

• Depth: 84.6 mm

• Net weight: 0.1 kg
