Main

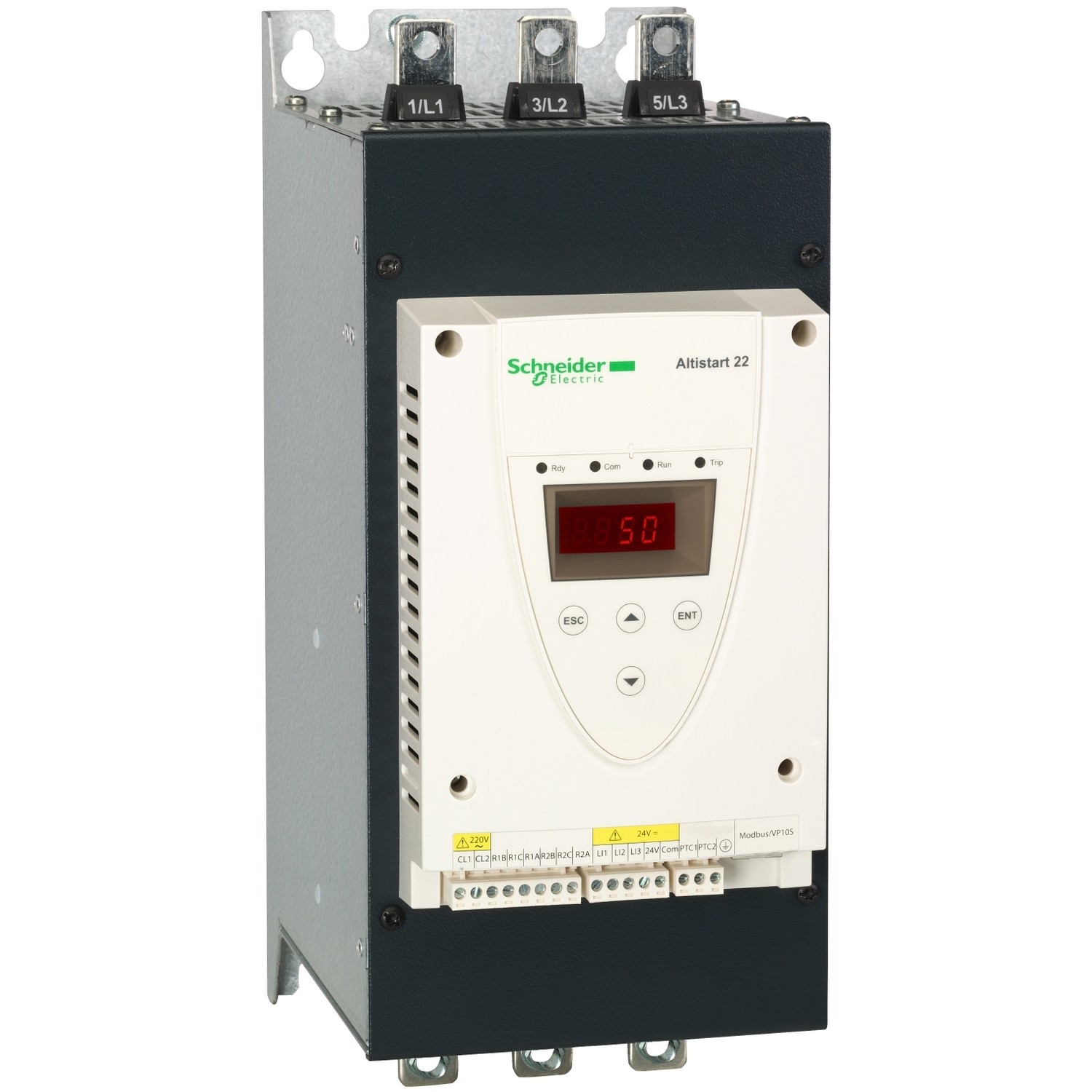

• Range of product: Altistart 22

• Product or component type: Soft starter

• Product destination: Asynchronous motors

• Product specific application: Pumps and fans

• Component name: ATS22

• Network number of phases: 3 phases

• [Us] rated supply voltage: 230...440 V - 15...10 %

• Motor power kW:

• 37 kW at 230 V

• 75 kW at 400 V

• 75 kW at 440 V

• Factory setting current: 131 A

• Power dissipation in W: 82 W for standard applications

• Utilisation category: AC-53A

• Type of start: Start with torque control (current limited to 3.5 In)

• IcL starter rating: 140 A for connection in the motor supply line for standard applications

• IP degree of protection: IP00

Complementary

• Assembly style: With heat sink

• Function available: Internal bypass

• Supply voltage limits: 195...484 V

• Supply frequency: 50...60 Hz - 10...10 %

• Network frequency: 45...66 Hz

• Device connection:

• In the motor supply line

• To the motor delta terminals

• [Uc] control circuit voltage: 230 V - 15...10 % 50/60 Hz

• Control circuit consumption: 20 W

• Discrete output number: 2

• Discrete output type:

• Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

• Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

• Minimum switching current: 100 mA at 12 V DC (relay outputs)

• Maximum switching current:

• 5 A 250 V AC resistive 1 relay outputs

• 5 A 30 V DC resistive 1 relay outputs

• 2 A 250 V AC inductive 0.4 20 ms relay outputs

• 2 A 30 V DC inductive 7 ms relay outputs

• Discrete input number: 3

• Discrete input type: (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm

• Discrete input voltage: 24 V <= 30 V

• Discrete input logic: Positive logic LI1, LI2, LI3 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA

• Output current: 0.4...1 Icl adjustable

• PTC probe input: 750 Ohm

• Communication port protocol: Modbus

• Connector type: 1 RJ45

• Communication data link: Serial

• Physical interface: RS485 multidrop

• Transmission rate: 4800, 9600 or 19200 bps

• Installed device: 31

• Protection type:

• Phase failure: line

• Thermal protection: motor

• Thermal protection: starter

• Marking: CE

• Type of cooling: Forced convection

• Operating position: Vertical +/- 10 degree

• Height: 356 mm

• Width: 150 mm

• Depth: 229.5 mm

• Net weight: 18 kg

• Motor power range AC-3:

• 30...50 kW at 200...240 V 3 phases

• 55...100 kW at 380...440 V 3 phases

• Motor starter type: Soft starter
