Main

• Range: ComPacT

• Range of product: ComPacT NSX100...250

• Product or component type: Trip unit

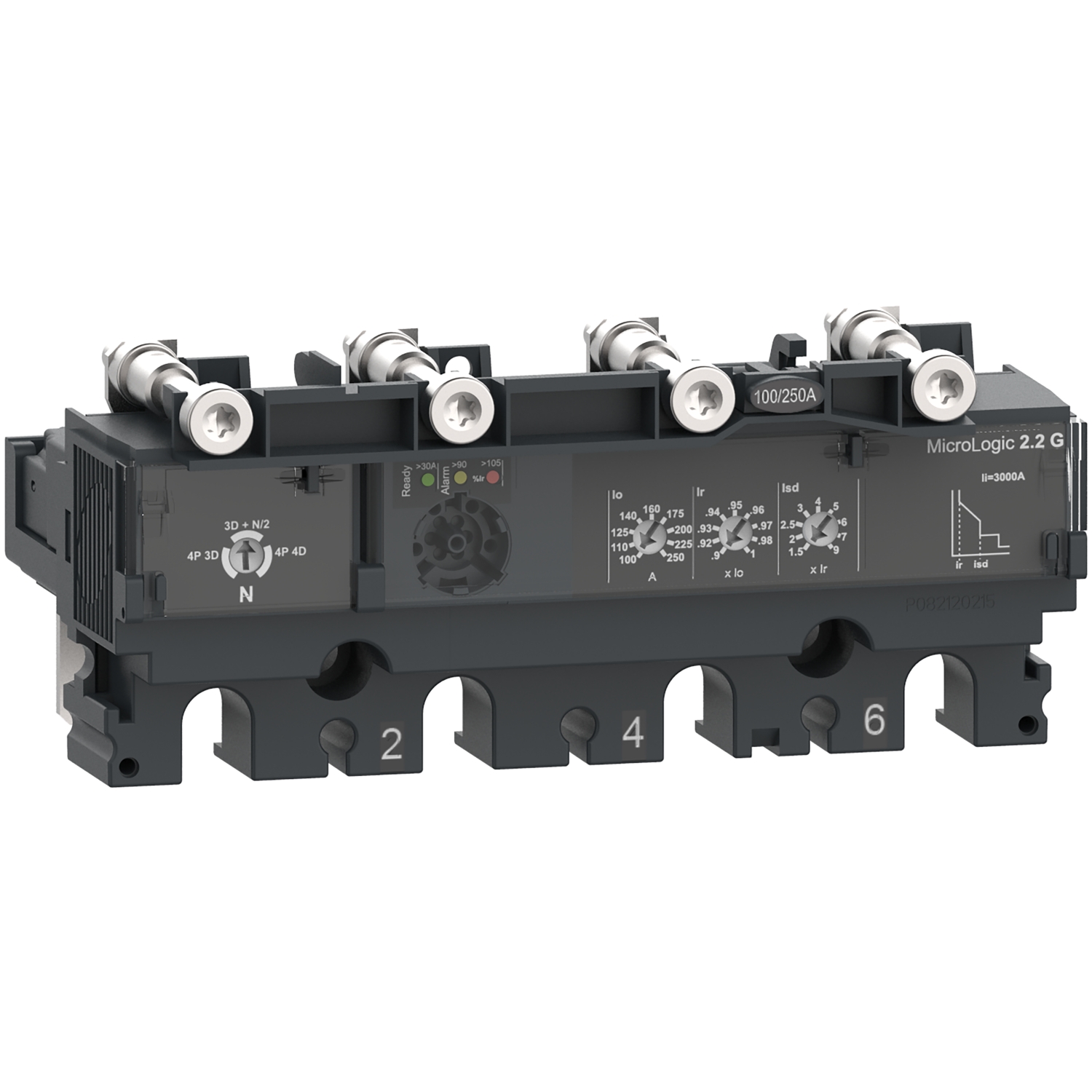

• Trip unit name: MicroLogic 2.2 G

• Trip unit technology: Electronic

• Range compatibility:

• ComPacT NSX100

• ComPacT NSX160

• ComPacT NSX250

• Device application: Generator

• Poles description: 4P

• Protected poles description:

• 3D + N/2

• 4D

• 3D

• Neutral position: Left

• Trip unit protection functions: LSol

• Protection type:

• L: for overload protection (long time)

• So: for short time short-circuit protection with fixed delay

• I: for instantaneous short-circuit protection

• Trip unit rating: 100 A at 40 °C

• [Ue] rated operational voltage: 690 V AC 50/60 Hz

• Network type: AC

• Network frequency: 50/60 Hz

• Circuit breaker mounting mode: Fixed

Complementary

• Long-time pick-up adjustment type Ir (thermal protection): Adjustable 9 settings

• [Ir] long-time protection pick-up adjustment range: 40...100 A

• Long-time protection delay adjustment type tr: Fixed

• [tr] long-time protection delay adjustment range:

• 15 s at 1.5 x Ir

• 0.35 s at 7.2 x Ir

• 0.5 s at 6 x Ir

• Neutral protection settings:

• 0.5 x Ir (3D + N/2)

• 1 x Ir (4D)

• No protection (3D)

• Thermal memory: 20 minutes before and after tripping

• Short-time protection pick-up adjustment type Isd: Adjustable

• [Isd] Short-time protection pick-up adjustment range: 1.5...9 x Ir

• Short-time protection delay adjustment type tsd: Fixed

• Instantaneous protection pick-up adjustment type Ii: Fixed

• [Ii] instantaneous protection pick-up adjustment range: 1500 A

• Earth-leakage protection: Without

• Zone selective interlocking ZSI: Without

• Local signalling:

• Flashing LED (green) for ready to operate

• LED 105 % Ir (red) for overload

• LED 90 % Ir (orange) for overload
