Main

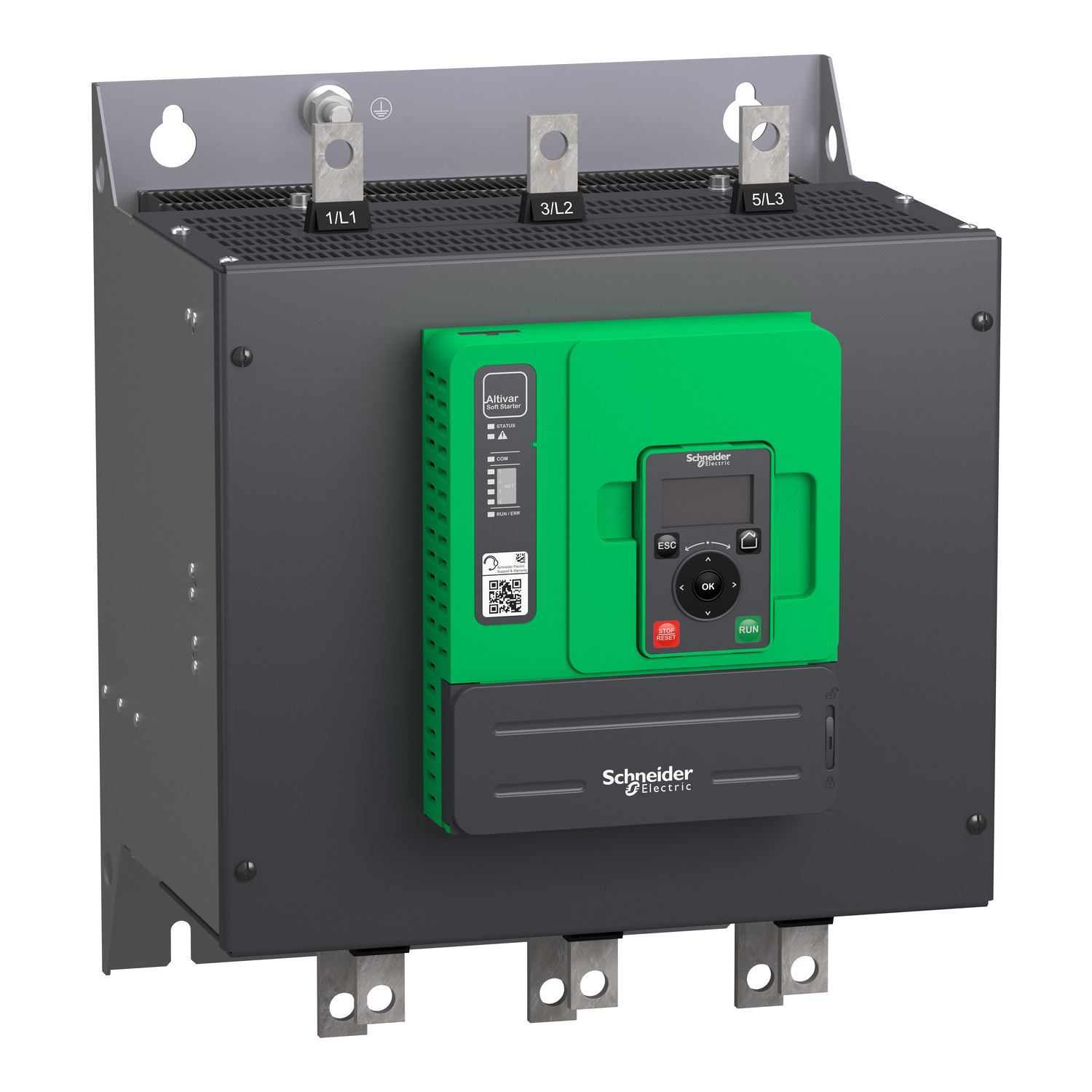

• Range of Product: Altivar Soft Starter ATS480

• Product or Component Type: Soft starter

• Product destination: Asynchronous motors

• Product Specific Application: Process and infrastructures

• Device short name: ATS480

• Phase: 3 phase

• Utilisation category: AC-3A, AC-53A

• Ue power supply voltage: 208...690 V - 15...10 %

• power supply frequency: 50...60 Hz - 20...20 %

• [Ie] rated operational current: Normal duty 250.0 A 104 °F (40 °C)

• rated current in heavy duty: 210.0 A at 104 °F (40 °C) heavy duty

• IP Degree of Protection: IP00

• Motor power kW:

• 75.0 kW 230 V in the motor supply line normal duty

• 55.0 kW 230 V in the motor supply line heavy duty

• 132.0 kW 400 V in the motor supply line normal duty

• 110.0 kW 400 V in the motor supply line heavy duty

• 132.0 kW 440 V in the motor supply line normal duty

• 110.0 kW 440 V in the motor supply line heavy duty

• 160.0 kW 500 V in the motor supply line normal duty

• 132.0 kW 500 V in the motor supply line heavy duty

• 160.0 kW 525 V in the motor supply line normal duty

• 132.0 kW 525 V in the motor supply line heavy duty

• 220.0 kW 660 V in the motor supply line normal duty

• 160.0 kW 660 V in the motor supply line heavy duty

• 250.0 kW 690 V in the motor supply line normal duty

• 200.0 kW 690 V in the motor supply line heavy duty

• 132.0 kW 230 V to the motor delta terminals normal duty

• 110.0 kW 230 V to the motor delta terminals heavy duty

• 220.0 kW 400 V to the motor delta terminals normal duty

• 160.0 kW 400 V to the motor delta terminals heavy duty

• Maximum Horse Power Rating:

• 75.0 hp 208 V normal duty

• 60.0 hp 208 V heavy duty

• 100.0 hp 230 V normal duty

• 75.0 hp 230 V heavy duty

• 200.0 hp 460 V normal duty

• 150.0 hp 460 V heavy duty

• 250.0 hp 575 V normal duty

• 200.0 hp 575 V heavy duty

• Option card:

• Communication module Profibus DP V1

• Communication module Modbus TCP/EtherNet/IP

• Communication module CANopen daisy chain

• Communication module CANopen Sub-D

• Communication module CANopen open style

• Communication module PROFINET

Complementary

• Device connection:

• In the motor supply line

• To the motor delta terminals

• [Us] control circuit voltage: 110...230 V AC 50/60 Hz - 15...10 %

• Apparent power: 0.106 kVA

• Integrated motor overload protection: True

• motor thermal protection class: Class 10E

• Protection type:

• Phase failure line

• Integrated thermal protection motor

• Thermal protection starter

• Current overload motor

• Underload motor

• Excessive starting time, locked rotor motor

• Motor phase loss motor

• Line supply phase loss line

• Line supply phase loss motor

• Thermal protection motor

• current limiting %In (5 x le maximum): 150...700 %

• [In] Rated current pwr loss specifctn: 250.0 A

• Power loss static current independent: 25.0 W

• Power loss per device current dependent: 675.0 W

• Standards: IEC 60947-4-2, UL 60947-4-2, IEC 60664-1

• Product Certifications: CE, cULus, CCC, UKCA, RCM, EAC, DNV, ABS, BV, CCS

• Marking: CE, CCC, UKCA, EAC, RCM, cULus

• [Uc] control circuit voltage: 24 V DC

• Discrete input number: 4

• Discrete input type:

• STOP logic inputs, 3500 Ohm

• RUN logic inputs, 3500 Ohm

• DI3 programmable as logic input, 3500 Ohm

• DI4 programmable as logic input, 3500 Ohm

• Input compatibility:

• STOP discrete input level 1 PLC IEC 61131-2

• RUN discrete input level 1 PLC IEC 61131-2

• DI3 discrete input level 1 PLC IEC 61131-2

• DI4 discrete input level 1 PLC IEC 61131-2

• Discrete input logic: Programmable digital input < 5 V

• Relay output number: 3

• Relay output type:

• Relay outputs R1A 1 NO

• Relay outputs R1B 1 NO

• Relay outputs R1C NO/NC programmable

• Minimum switching current: 100 mA 12 V DC relay outputs

• Maximum switching current:

• Relay outputs 2 A 250 V AC

• Relay outputs 2 A 30 V DC

• Relay outputs

• Discrete output number: 2

• Discrete output type:

• DQ1 programmable digital output <= 30 V

• DQ2 programmable digital output <= 30 V

• Output compatibility: Open collector level 1 PLC IEC 65A-68

• Analogue input number: 1

• Analogue input type:

• AI1/PTC PTC/Pt 100 temperature probe

• PTC2 PTC/Pt 100 temperature probe

• PTC3 PTC/Pt 100 temperature probe

• Analogue output number: 1

• Analogue output type: Current output AQ1 0...20 mA or 0...10 V 500 Ohm

• Communication Port Protocol: Modbus serial

• Connector Type: 1 RJ45

• Communication data link: Serial

• Physical interface: 2-wire RS 485

• Transmission Rate: 1200...256000 bit/s

• Transmission frame: RTU

• Data format: 8 bits, configurable odd, even or no parity

• Type of polarization: No impedance Modbus serial, No impedance Modbus serial

• Number of addresses: 1...247 Modbus serial

• Method of access: Slave Modbus serial, Slave Modbus serial, Slave Modbus serial

• Function Available:

• Pre-heating bypass control

• Second motor cascade

• Multi-motor cascade

• Ports and event logging

• User management

• Ports and event logging

• Cybersecure firmware update

• Single direction

• Display screen available: True

• Operating position:

• Vertical +/- 10 degree

• 15.0 in (380.0 mm)

• Height: 15.0 in (380.0 mm)

• Width: 12.6 in (320.0 mm)

• Depth: 10.9 in (277.0 mm)

• Net weight: 40.1 lb(US) (18.2 kg)
