Main

• Range of Product: Harmony XB5, Harmony XB4

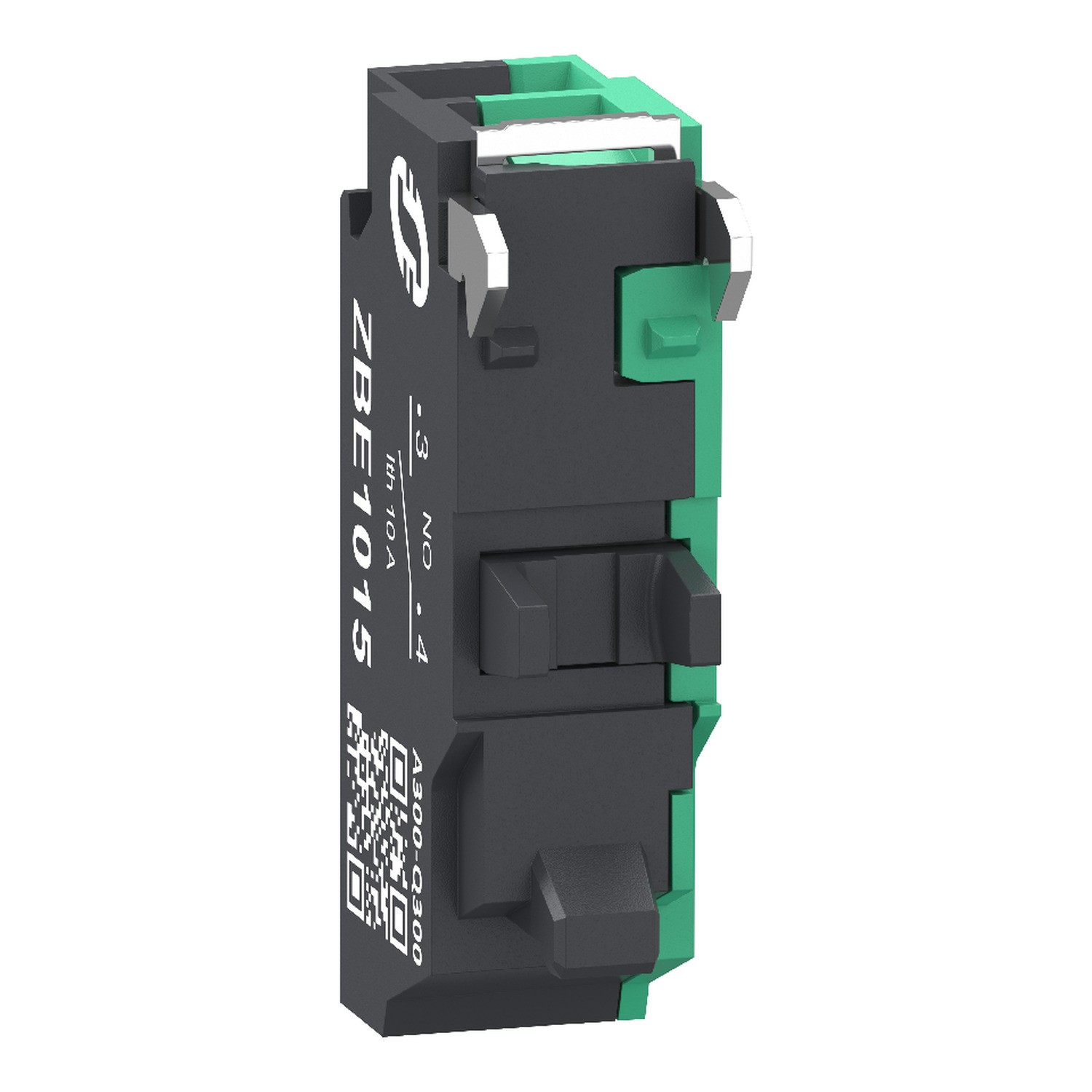

• Product or Component Type: Contact block

• Device short name: ZBE

• Sale per indivisible quantity: 5

• IP degree of protection: IP20 IEC 60529

• Contact operation: Slow-break

• Contact block type: Single

• Contacts usage: Standard contacts

• Connections - terminals:

• Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1

• Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1

Complementary

CAD overall width: 1.4 in (34.3 mm)

• CAD overall height: 0.6 in (14.8 mm)

• CAD overall depth: 0.4 in (9.8 mm)

• Net Weight: 0.011 lb(US) (0.005 kg)

• Contacts type and composition: 1 NO

• Positive opening: Without

• Operating travel:

• 0.08 in (2.05 mm) NO changing electrical state

• 0.2 in (4.3 mm) total travel

• Operating force: 2.45 N NO changing electrical state

• Mechanical durability: 10000000 cycles

• Contacts material: Silver alloy (Ag/Ni)

• Short-circuit protection: 10 A cartridge fuse gG IEC 60947-5-1

• [Ith] conventional free air thermal current: 10 A IEC 60947-5-1

• [Ui] rated insulation voltage: 300 V 3)IEC 60947-1

• [Uimp] rated impulse withstand voltage: 4 kV IEC 60947-1

• [Ie] rated operational current:

• 6 A 120 V, AC-15, A300 IEC 60947-5-1

• 3 A 240 V, AC-15, A300 IEC 60947-5-1

• 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1

• 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1

• Mounting of block: Front mounting

• Device presentation: Basic element
