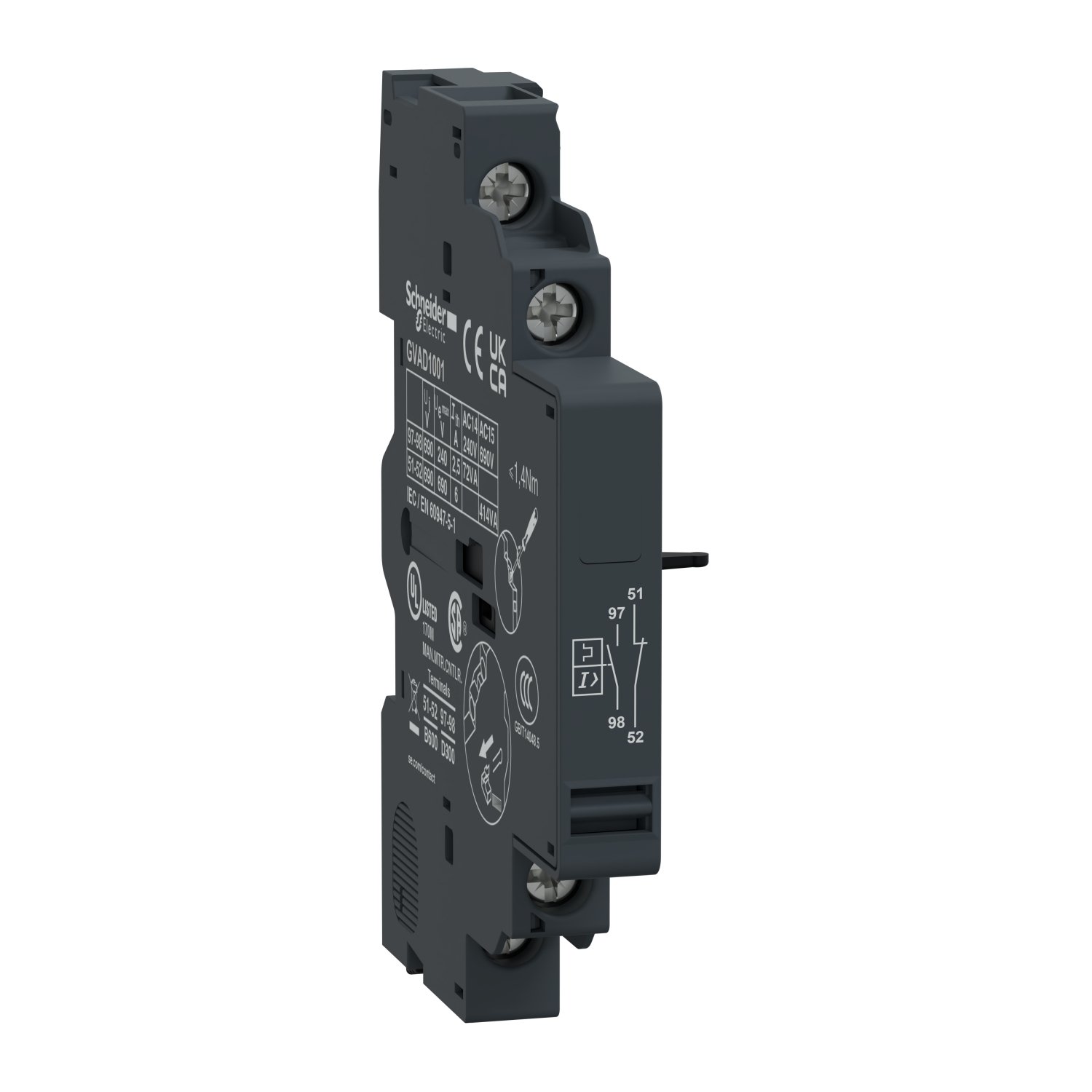

GVAD1001
Main
Range: TeSys, TeSys Deca
Device short name: GVAD
Product or component type: Auxiliary contact block
Product compatibility: GV2P, GV2LE, GV3L, GV2ME, GV2RT, GV3P, GV2L
Mounting location: Left side
Auxiliary contacts operation: Fault signal 1 NO
Pole contact composition: 1 NO + 1 NC
Complementary
[Ui] rated insulation voltage: 690 V conforming to IEC 60947-1; 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14
[Ue] rated operational voltage: 48...690 V AC; 24...240 V DC
[Ith] conventional free air thermal current: 6 A; 2.5 A for fault signalling
Mechanical durability: 100000 cycles
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Protection type: GB2CB... circuit breaker; GG fuse 10 A
Rated operational power in VA:
300 VA at 48 V AC-15 - electrical durability: 100000 cycles
414 VA at 690 V AC-15 - electrical durability: 100000 cycles
500 VA at 110...127 V AC-15 - electrical durability: 100000 cycles
500 VA at 440 V AC-15 - electrical durability: 100000 cycles
500 VA at 500 V AC-15 - electrical durability: 100000 cycles
650 VA at 380...415 V AC-15 - electrical durability: 100000 cycles
720 VA at 230...240 V AC-15 - electrical durability: 100000 cycles
850 VA at 380...415 V AC-15 - electrical durability: 100000 cycles
36 VA at 24 V AC-14 - electrical durability: 1000 cycles
48 VA at 48 V AC-14 - electrical durability: 1000 cycles
72 VA at 110...127 V AC-14 - electrical durability: 1000 cycles
Rated operational power in W:
120 W at 240 V DC-13 - electrical durability: 100000 cycles
140 W at 110 V DC-13 - electrical durability: 100000 cycles
140 W at 24 V DC-13 - electrical durability: 100000 cycles
180 W at 60 V DC-13 - electrical durability: 100000 cycles
240 W at 48 V DC-13 - electrical durability: 100000 cycles
15 W at 48 V DC-13 - electrical durability: 1000 cycles
24 W at 24 V DC-13 - electrical durability: 1000 cycles
9 W at 60 V DC-13 - electrical durability: 1000 cycles
Height: 89 mm
Width: 9.3 mm
Depth: 66 mm
Net weight: 0.055 kg
Colour: Dark grey
